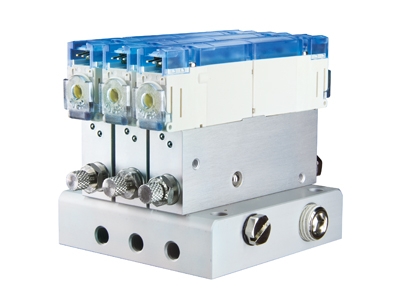

Vacuum sensor
Series connection
Aluminum,Stability quality
Position design
Vacuum sensor
Series connection
Aluminum,Stability quality
Position design
| Main Unit Type | VA17 | VB08 | VC08 | VB27 | VC27 | ||
| Media | Air | ||||||
| Type of valve and operation method | Pilot operated | ||||||
| Lubrication | Not required | ||||||
| Operating temperature range | 5~50 oC (no freezing) | ||||||
| Operating pressure range | Vacuum pressure(PV) | 0~101MPa | 0.15~0.6MPa | 0.3~0.6MPa | 0.15~0.6MPa | 0.3~0.6MPa | |
| Supply/Release pressure (P) | 0.15~0.7MPa | ||||||
| CV | 0.15 | -- | -- | ||||
| Nozzle diameter | -- | 0.5 mm | 1.0 mm | ||||
| Suction flow | -- | 8 (ℓ /min(ANR)) | 27 (ℓ /min(ANR)) | ||||
| Air consumption | -- | 14 (ℓ /min(ANR)) | 68 (ℓ /min(ANR)) | ||||
| Final vacuum | -- | -90kPa | -90kPa | ||||
| Rated supply pressure | -- | 0.5MPa | 0.5MPa | ||||
Solenoid Specifications *DC5V.DC12V Custom made
| Main Unit Type | Supply Valve | Release Valve | ||
| Coil rated voltage * | DC24 | |||
| Allowable voltage fluctuation | ±10% | |||
| Power consumption | 42mA(1W) | |||
| Surge voltage suppressor | Diode | |||
| Indicator light | LED (Blue) | |||
Sensor Specifications
| Main Unit Type | VA17S | VB08S | VB27S | VC08S | VC27S | ||
| Rated pressure range | 0~-100Kpa | ||||||
| Setting pressure range | 0~-100Kpa | ||||||
| Withstand pressure | 300kPa | ||||||
| Fluid | Air，Non-corrosive / Non-flammable gas | ||||||
| Display selection | Unit：KPa , MPa , kgf/cm2 , bar , psi , inHg | ||||||
| Display saving | |||||||
| Power supply voltage | DC12~24V ± 10% | ||||||
| Current consumption | ≦ 30mA | ||||||
| Switch output | NPN open | ||||||
| Output operation | NO / NC | ||||||
| Output mode | One point mode / Hysteresis mode / Window comparator mode | ||||||
| Response time | 2ms , 20ms , 100ms , 250ms , 500ms , 1s , 2s | ||||||
| Maximum load current | 50mA | ||||||
| Maximum applied voltage | DC30V | ||||||
| Hysteresis | Adjustable 1~9 KPa | ||||||
| Indicator accuracy | ≦ 0.2% F.S. | ||||||
| Lock password | Yes | ||||||
| Copy function | Yes | ||||||
| Language selection | Chinese / English | ||||||
| Switch ON Indicator | Green：Power，Red：Alam | ||||||
| Ambient temperature range | Operation：0~0~50oC，Storage-10~60oC (No condensation or freezing) | ||||||
| Ambient humidity range | Operation / Storage：35~85% RH(with no condensation) | ||||||
| Accessories | Sensor Cable ( VSL-2M) | ||||||
| Weight | 40g | ||||||
