Digital panel design.(5 Channel memory function)
Easy to learn for saving time.
Designed specially for low-viscosity materials.
Revolver and Liquid Conveying.Pipe are easy to dismantle.

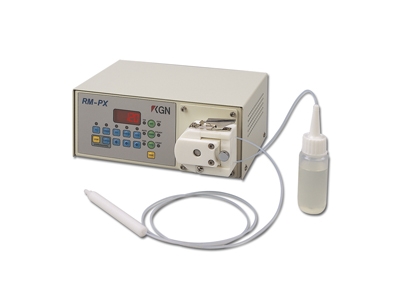

RM-PX Rotary Tubing Dispenser


Main Unit Type	RM-PX
Control method	Rotary tubing system
Power supply	AC110V/AC220V±10%、50/60Hz (change by internal transformer)
Power consumption	30VA(Max.)
Rotor speed	Variable(Max.120r.p.m.)
Dispensing duration range	0.01~99.9sec.
Operating mode	Auto mode / Steady mode
Display section	LED Digital display
Input signal	Foot switch or non-voltage N.O. input contact.  (Voltage input of DC5~24V is available by interanl dip switch)
Shot end signal	Open collector (DC24V, Max200mA)
Applicable viscosity	Low viscosity
External dimensions	(W)203x(D)139x(H)84 mm
Weight	2.3kg



https://www.kgn.com.tw/d/30/RM-PX.pdf
