Axial centre alignment and parallelism alignment can be easily performed.
High precision work for axial center alignment is not required.Mounting time can be drastically decreased.
Dust seal prevents failures by dust.
High precision work for axial center alignment is not required.Mounting time can be drastically decreased.
Dust seal prevents failures by dust.

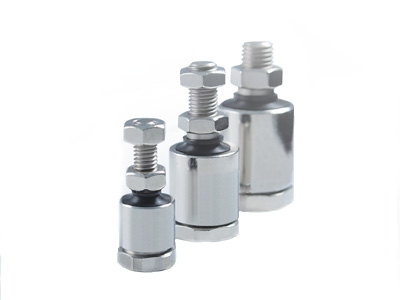

CYLINDER JOINTS
仕樣
Click-->Manual
| Fittings Model | Fittings Type |
| KCJ | Cylinder Joint |
| KCJS | Cylinder Join |
| KCJL | Cylinder Join |
仕樣
| Type | Applicable thread size for cylinder rod |
Maximum cylinder thrust applicable at 1MPa N {kgf} |
Maximum tensile breaking load N {kgf} |
Allowable ecentricity U mm |
Swing angle |
| KCJ-3X0.5 | M3x0.5 | 19.6 {2} | 3334.3{340} | 0.5 | ±5o |
| KCJ-4X0.7 | M4x0.7 | 58.8{6} | 3334.3{340} | 0.5 | |
| KCJ-6X1 | M6x1 | 13.7{14} | 5884.0{600} | 0.5 | |
| KCJ - 8x1 | M8x1 | 305.0{31.1} (475{48.5}) | 20594.0{2100} | 0.5 | |
| KCJ - 8x1.25 | M8x1.25 | 305.0{31.1} (475{48.5}) | 20594.0{2100} | 0.5 | |
| KCJ - 10x1.25 | M10x1.25 | 780.6{79.6} | 31381.3{5000} | 0.75 |
