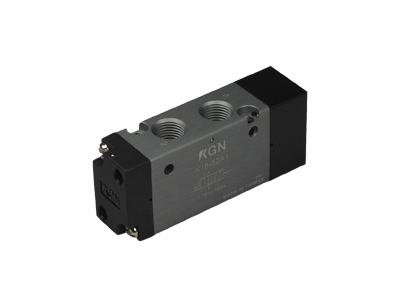

K Series Solenoid Valves

K Series Solenoid Valves

Download
 K SERIES AIR-PILOTED VALVES
 K11 Series
 Main Unit Type                                Type
 K11-52A1  Single pilot
 K11-52A2  Double pilot
 K18 Series
 Main Unit Type  Type
 K18-52A1  Single pilot
 K18-52A2  Double pilot
 K28 Series
 Main Unit Type  Type
 K28-52A1  Single pilot
 K28-52A2  Double pilot

Specifications
 Item               \               Main Unit Type  K11 K18 K28
-A1 -A2 -A1 -A2 -A1 -A2
 Media Air
 Port size M5x0.8 Rc1/8 Rc1/4
 Operating pressure                        MPa  0.15~0.7    0~0.7    0.15~0.7    0~0.7    0.17~0.7     0~0.7
 Proof pressure                               MPa 1.05
 Maximum operating frequency           Hz 5
 Operating temperature range            oC 5~50(no freezing)
