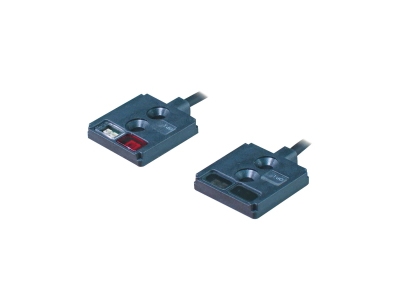

- Reliably detects inclined transparent glass
Ideal for flush-mounting in robot end-effecter. - Unique optical system allows stable detection regardless of warpage or inclination of glass
Unprecedented reliability in inclined object detection is realized by the use of two red LED light sources - Thin (4mm) embedded amplifier photo sensor
Counterbores for M3 countersunk screws convenient for flush-mounting in robot end-effecter.
| TYPE | NPN output | ASG-S20R | ASG-S20RV | ASG-Z15R | ASG-Z15RV |
| PNP output | ASG-S20RPN | ASG-S20RVPN | ASG-Z15RPN | ASG-Z15RVPN | |
| Detection method | Glass wafer detection Diffuse reflective | Glass wafer detection Convergent reflective | |||
| Detecting distance (mm) | Glass 20mm below 25 mm at maximum (※) |
Glass 3~15mm below 18 mm at maximum(※) |
|||
※：The maximum distance is the distance that the transparent glass can move even if it is tilted.
