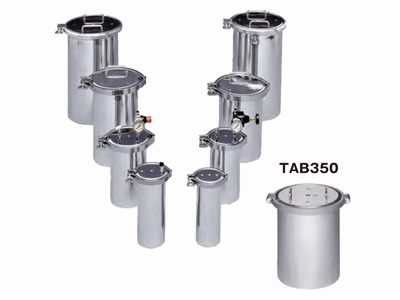

Pressure tanks TA series is designed such that material which has been filled in an inner container can be put into the tank and used. Since the material is not filled directly into the pressure tank, cleaning of the tank body is not required. Besides our stainless steel inner container, you can use other containers available in the market.
TAB350 is a large pressure tank type which 18 litre drum or pail available in the market can be placed directly into the tank.
We have a wide range of options from which you can select according to your requirements.
| Model | TA90N | TA100N | TA125N | TA150 | TA200 | TA201 | TA253 | TA254 | TAB350 |
| Tank Capacity | 1.8L | 2.5L | 3.4L | 4.9L | 10.1L | 11.8L | 23.7L | 23.7L | 39.3L |
| Weight | 2.5kg | 3.1kg | 4.5kg | 6.7kg | 114.5 | 15.8kg | 24.2kg | 25.3kg | 39.6kg |
| Material | SUS304 | ||||||||
| OperatingPressure | Maximum 0.49MPa | ||||||||
| Lid Attach / Detach Mechanism | Ferrule clamp type | ||||||||
| Fluid Outlet | Top port (Upper) Rc1/4 (standard) | ||||||||
| Air Pressure Port | Top port (Upper) Rc1/4(standard) | ||||||||
| Sealing Method | O-ring seal (NBR standard) | ||||||||
| Finish | Buffing of the inside and outside surface | ||||||||
| Inner Container for TA Pressure Tanks | |||||||||
| Model | For TA90N |
For TA100N |
For TA125N |
For TA150 |
For TA200 |
For TA201 |
For TA253/TA254 |
||
|
1.3L | 1.8L | 2.6L | 4.L | 8.4L | 10.0L | 20.0L | ||
| A(mm) | 56 | 69 | 93 | 118 | 168 | 169 | 219 | ||
| B(mm) | 17 | 17 | 17 | 17 | 17 | 17 | 17 | ||
| Height | 240 | 255 | 240 | 240 | 290 | 340 | 440 | ||
*The shape of the base and the size and position of the tap on the lid will vary depending on the model.
*Other than the standard NBR, the materials in which the O-ring is available are FKM, Silicone, EPDM, FFKM, FEP/SI double O-ring etc. Please select the one which suits the material you are using.
