PRODUCTS Products
Air supply control valve
Status light
Cleaning
Intelligent detection systems
Energy saving
Safety first
Status light
Cleaning
Intelligent detection systems
Energy saving
Safety first

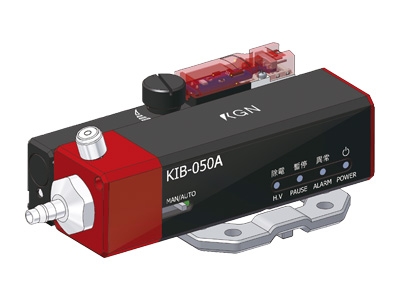

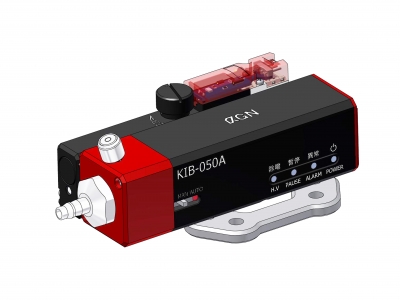

| Main Unit Type | KIB-050A | KIB-050M | |
| Air source control method | Pilot operated solenoid valve | Needle valve | |
| Media *1 | Air (Non-lubricated dry air) | ||
| Voltage at discharging pin | High-frequency AC (Approximate) 2KV,72KHz |
||
| Ion Balance *2 | ± 15V | ||
| Indicator LED |
High voltage | LED(Green) | |
| Pause | LED(Blue) | ||
| Alarm | LED(Red) | ||
| Power | LED(Green) | ||
| Input signal | Discharge stop signal | DC10~30V | |
| Output signal | Discharge error *3 | Open collector (NPN) (50mA) | |
| Soenoid valve control | Output 24V | -- | |
| Ozone volume | 0.03ppm (or less) | ||
| Supply Air Flow Range *4 | (Approximate) 126ℓ/min(ANR) | (Approximate) 178ℓ/min(ANR) | |
| Operating Air Pressure Range | 0.15~0.5MPa 1.5~5.0kgf/cm2 |
0.05~0.5MPa 0.5~5.0kgf/cm2 |
|
| Operating Environmental Temperature | (indoor) 0~40o C | ||
| Power Input | DC24V±5% | ||
| Current Consumption | (Approximate) 100mA | (Approximate) 60mA | |
| Overall Dimensions (Main Unit) (WxDxH) | 92.7x37x33.1mm | 90.9x37x33.1mm | |
| Weight (Main Unit) | 142g | 97g | |
| *1. When in use,it is prohibited to operate continuously in a state where no gas source is supplied. *2. 300mm away for the nozzle outlet. *3. For signal monitoring only, do not drive load directly. *4. The airflow is according to the measured value under the 0.5MPa conditions with a KI-N03S nozzle. Supply Air Flow>35ℓ/min(ANR). |
|||
