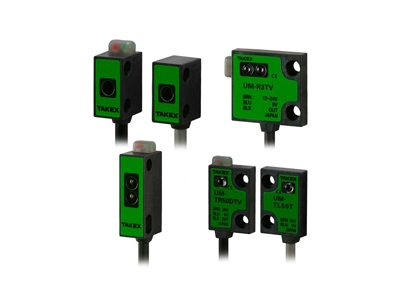

UM Series

UM Series

Download
Ultra miniature size(extra thin, extra compact)
Long distance detecting up to 1m
Ldeal for integrating into small devices

*Thinness of 3.5mm achieved with embedded amplifier type!
  Extremely small volume:less than 0.8cm3
  Volume fraction :about 1/5 ( to conventional Takex product )

*Low cost
*Red LED light source allows checking of emitted light spot
*Equipped with stability and operation indicators
*Wide range of applications from small-scale FA to system wide FA
Type
  Detection method
 Detecting
distance
Model In-line sensitivity
 adjustment volume
 Operation
mode
 Output
   mode
 NPN Output    PNP Output
Through beam 150mm UM-T15T --  -- Light-ON   Open collector
output
UM-T15DT UM-T15DTP Dark-ON
UM-T15TV -- Provided  Light-ON
 UM-T15DTV   UM-T15DTVP  Dark-ON
500mm UM-T50T -- -- Light-ON
UM-T15DT UM-T50DTP Dark-ON
UM-T15TV -- Provided Light-ON
UM-T15DTV UM-T50DTVP Dark-ON
UM-T50S UM-T50SP -- Light-ON
UM-T50DS UM-T50DSP Dark-ON
UM-T50SV UM-T50SVP Provided Light-ON
UM-T50DSV UM-T50DSVP Dark-ON
1m UM-T100T UM-T100TP -- Light-ON
UM-T100DT UM-T100DTP Dark-ON
UM-T100S -- -- Light-ON
UM-T100DS -- Dark-ON
Diffuse reflective 2-30mm UM-R3T UM-R3TP -- Light-ON
UM-R3DT -- Dark-ON
UM-R3TV UM-R3TVP Provided Light-ON
UM-R3DTV -- Dark-ON
2-50mm UM-R5T -- -- Light-ON
UM-R5DT -- Dark-ON
UM-R5TV UM-R5TVP Provided Light-ON
UM-R5DTV -- Dark-ON
 Convergent reflective  5-30mm UM-Z3SV UM-Z3SVP Provided Light-ON
UM-Z3DSV -- Dark-ON
*PNP output type models identified by a "P" at the end of the model number comes with an output conversion unit.
