Modularized design for easy maintenance.
Display on top of device frame.
Compact and space saving.



Type		KIF-1000N	KIF-2000N	KIF-1000T	KIF-2000T	KIF-3000N
Ion generation		Conrona discharge
Voltage at discharging pin		High-frequency AC
Static elimination time *1  (±1000V►±100V)		Approximate 2.5 sec	Approximate 1.5 sec	Approximate 1.5 sec	Approximate 1.0 sec	Approximate 1.0
lon balancing		±15V	±15V	±5V	±5V	±15V
Air volume		22~45 CFM (0.62~1.28 M3/min)	64~150 CFM (1.82~4.26 M3/min)	26~60 CFM (0.74~1.70 M3/min)	64~150 CFM (1.82~4.26 M3/min)	128~300 CFM (3.64~8.52 M3/min)
Ozone volume (within 150mm)		0.007ppm以下				0.014ppm
Control for discharging suspension *2		--		Power input (DC10V~30V)		--
Warning output *3	Fan stop	YES
	Discharge error	YES
	The pin cleaning module  is not properly covered	YES
Ambient temperature		0~40oC (indoor)
Relative humidity		35%~75%，non-condensing
Power input		DC24V ± 5%
Current consumption		220 mA	470 mA	370 mA	470 mA	750 mA
Dimension     WxHxD  mm		116x142x63	142x173x63	116x142x63	142x173x63	300x173x63
Weight (Mounting excluded)		500 g	683 g	516 g	691 g	1521g

*1.Measured with maximum air speed and at a location centered in the air output and 300mm away from the fan.
*2.When pausing the power input, the warning contact output.
*3.Signaling at output contact, NC/NO panel switch (50mA)

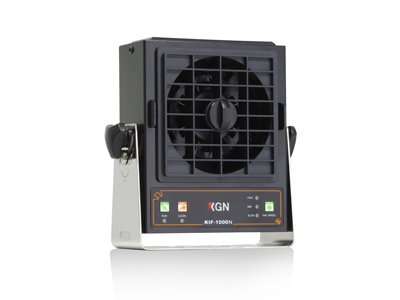

KIF-1000N/T KIF-2000N/T KIF-3000N

KIC-03

KIC-05
