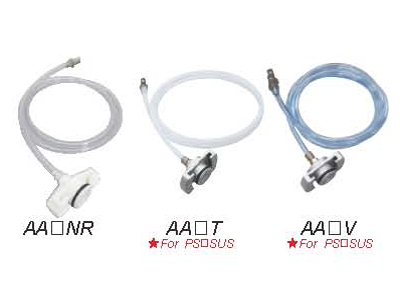

Tubes to supply pressure by connecting it to a dispenser and a barrel.
Moulded plastic adapter heads accept applicable barrels for use with all KGN dispensing systems.




Type		For Volume	Weight	Head material	Tube material/Length	For Barrel
AA03		3ml	47.3g	Brass, nickel plated	PVC(DIN)/1m	PS       S(-M)  PS       SUV  PS       SUVA(-M)  PS       SUS
AA05NR		5ml	39.6g	POM
AA10NR		10ml	42.6g
AA30NR		30ml.50ml	48.8g
AA05T		5ml	62.2g	Aluminum	PTFE / 1m	PS       SUS
AA10T		10ml	66.0g
AA30T		30ml	84.0g
AA05V		5ml	47.7g		PU / 1m	PS       SUS
AA10V		10ml	52.4g
AA30V		30ml	70.5g

Output pressre：0~0.69MPa(0~7.0kgf/cm²)
