Poppet valve is a pneumatically operated valve.
valve is on when pressure is over than 0.30MPa and off by a built-in spring.
When use dispense controller and pressure tank, the shot volume can be controlled to a very small amount
by adjusting the material delivery pressure and the valve opening time. Valve has"suck back effect"
to suck back the material before the valve is off.
valve is on when pressure is over than 0.30MPa and off by a built-in spring.
When use dispense controller and pressure tank, the shot volume can be controlled to a very small amount
by adjusting the material delivery pressure and the valve opening time. Valve has"suck back effect"
to suck back the material before the valve is off.

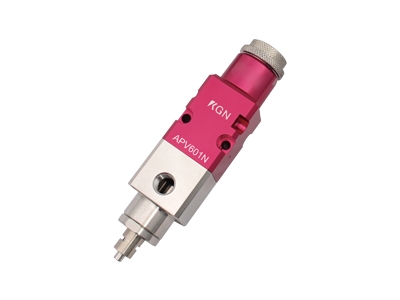

APV 6 Series (Air Operated) Poppet Valve
Specifications
*Adjust fluid pressure according to viscosity.
*The minimum shot volume depends on the dimension of valve needle.
*Volume(c.c/min):0.1Mpa/min water testing result.
Specifications
Valve mode | APV601N | ||
Valve structure | Poppet valve | ||
Minimum shot | 0.005 c.c | ||
Fluid flow (Max.) | 3300 c.c/min | ||
Viscosity | ~100Pa.s(~100,000cps) | ||
Wetted parts material | SUS316 | ||
Diaphragm material |
PTFE
|
||
Material inlet(Max.) | 0.69MPa(7.0kgf/cm2) | ||
Material port dimension | Ø8.5mm, Thread Rc1/8(PT1/8) | ||
Operating cycle (Max.) | 200 cycles/min. | ||
Dispensing pressure | 0.30~0.69MPa(3.0~7.0 kgf/cm2) | ||
Weight | 325g |
*The minimum shot volume depends on the dimension of valve needle.
*Volume(c.c/min):0.1Mpa/min water testing result.
