KGN Air operated types Diaphragm is on when pressure is over 0.34MPa and is off by a built-in spring.
Using with dispense controller and pressure tank, the shot volume can be controlled to a very small amount by adjusting the
material delivery pressure and the valve opening time. This valve is suitable for compact automated equipments.
Using with dispense controller and pressure tank, the shot volume can be controlled to a very small amount by adjusting the
material delivery pressure and the valve opening time. This valve is suitable for compact automated equipments.

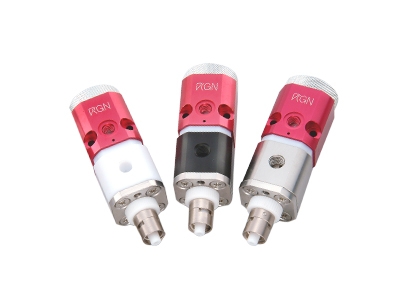

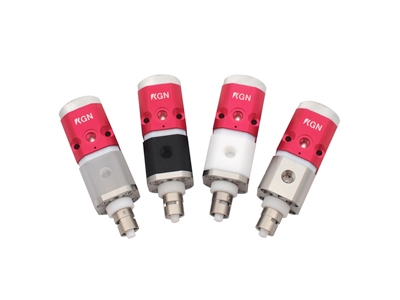

ATV 2 Series (Air Operated) PTFE Diaphragm Valve
Specifications
*Adjust fluid pressure according to viscosity.
*The minimum shot volume depends on the dimension of valve needle.
*Volume(c.c/min):0.1Mpa/min water testing result.
Specifications
| Valve mode | ATV212 | ATV222 | ATV232 | |
| Valve structure | PTFE diaphragm valve | |||
| Minimum shot | 0.005 c.c | |||
| Fluid flow (Max.) | 365 c.c/min | |||
| Viscosity | ~1Pa.s(~1,000cps) | |||
| Wetted parts material | PTFE | POM | SUS316 | |
| Diaphragm material |
PTFE
|
|||
| Needle Adapter |
NA-M6-T
|
NA-M6-P | ||
| Material port dimension | Ø1.0mm, Thread M6x1.0 | Ø1.0mm, Thread M6x1.0 (Order made PT1/8) |
||
| Operating cycle (Max.) | 200 cycles/min. | |||
| Dispensing pressure | 0.34~0.69MPa(3.2~7.0 kgf/cm2) | |||
| Weight | 70g | 60g | 100g | |
*The minimum shot volume depends on the dimension of valve needle.
*Volume(c.c/min):0.1Mpa/min water testing result.
