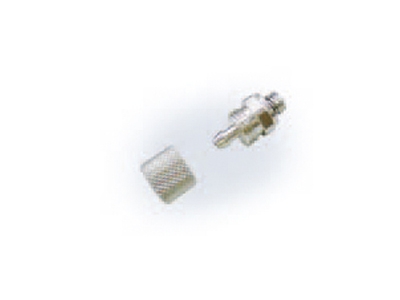

METAL FITTING
Specifications
| Fittings Model | Fittings Type |
| KBF4U-S | SUS fitting |
| KBF U | Straight(Clamp fitting) |
| KBF U-01 | Straight(Clamp fitting) |
| KPF | Plug |
| KFA | Adapter Accessories |
| KBL | SUS fitting |
| KBS | |
| KS | Sleeve |
Specifications
| Type | KBF4U-S | KBF4U | KBF6U | KBF4U-01 | KBF6U-01 |
| Connection thread | M5x0.8 | M5x0.8 | R1/8 | ||
| Tube size | Ø4x3 | Ø4x2.5 | Ø6x4 | Ø4x2.5 | Ø6x4 |
| Recommended tube | PTFE tube | Polyurethane tube | |||
| Effective sectional area | 3.1m㎡ | 2.0m㎡ | 3.2m㎡ | 2.1m㎡ | 3.6m㎡ |
| Material | SUS304 | Brass (Nickel plated) | |||
| Weight | 2.9g | 4.3 | 4.2 | 7.4 | 7.3 |
| Type | KBL4-M3 | KBS3-M3 | KBS3-M5 | KBS4-M5 | KBS6-M5 | |
| Connection thread | M3x0.5 | M3x0.5 | M5x0.8 | |||
| Recommended tube (Tube size) |
Soft nylon tube、
Polyurethane tube
(Ø4x2.5)
|
Soft nylon tube、Polyurethane tube (Ø3.18x2.18)、(Ø3.18x2) |
Soft nylon tube、 Polyurethane tube (Ø4x2.5) |
Soft nylon tube、 Polyurethane tube (Ø6x4) |
||
| Fluid | Air | |||||
| Pressure(Max.) | 0.8MPa { 8.16kgf/c㎡ } | |||||
| Negative pressure | -100kPa {-750mmHg } | |||||
| Temperature range | 5~60oC (no freezing) | |||||
| Effective sectional area | 0.6m㎡ | 0.9m㎡ | 1.7m㎡ | 2.1m㎡ | 4.0m㎡ | |
| Material | Body | Brass(Nickel plated) | SUS304 | |||
| Bolt | SUS303 | -- | ||||
| Weight | 1.4g | 0.7g | 1.5g | 1.5g | 1.8g | |
