Compact and space saving.
Tank Pressure reverse flow prevention.
Drop prevention.
Prevention of reverse flow to vacuum source.
Tank Pressure reverse flow prevention.
Drop prevention.
Prevention of reverse flow to vacuum source.

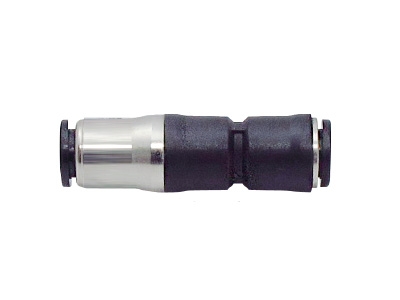

UNION STRAIGHT CHECK VALVES Specifications
*1.A certain amount of leckage is allowed in the specifications of this product, Please note that it is not suitable for holding over an extended period of time.
*2.The flow is an atmospheric pressure conversion value at 0.5MPa.
| Type | KCV4U | KCV6U |
| Fluid | Air | |
| Pressure rang | 0.03~1.0 MPa | |
| Temperature range | 5~60oC(no freezing) | |
| Negative pressure | -100kPa {-750mmHg} | |
| Check valve diaphragm point | 0.03MPa | |
| Recommended tube | Nylon tube, Polyurethane tube | |
| Flow I/min(ANR) | 180 | 455 |
*1.A certain amount of leckage is allowed in the specifications of this product, Please note that it is not suitable for holding over an extended period of time.
*2.The flow is an atmospheric pressure conversion value at 0.5MPa.
