Fittings offer speed control of cylinders and other actuators.
Provides superior flow characteristics and fine adjustment at low flow ranges.
We have the standard type, mini type and union straight type.
The double-passage straucture facilitates connection and disconnection of the tube.
Provides superior flow characteristics and fine adjustment at low flow ranges.
We have the standard type, mini type and union straight type.
The double-passage straucture facilitates connection and disconnection of the tube.

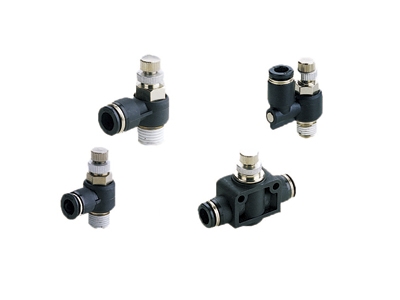

STANDARD TYPE SPEED CONTROLLERS
Specifications
| Fittings Model | Fittings Type |
| KSC | Elbow |
| KSS | Straight |
| KSSU | Union Straight |
Specifications
| Type | KSC Standard Type |
KSS Standard Type |
KSSU Union Straight |
| Mounting type | Cylinder direct mounting | -- | |
| Fluid | Air | ||
| Pressure range | 0~0.9MPa { 0~9.2kgf/cm2 } | ||
| Negative pressure | 0.05MPa {0.51kgf/cm2 } | ||
| Temperature range | 5~60oC(no freezing) | ||
| Recommended tube | Nylon tube, Polyurethane tube | ||
