Patented Tube Gripping Design.
Conformance with requirements of RoHS.
Pre-applied coatings for sealing.
Digital information.
Conformance with requirements of RoHS.
Pre-applied coatings for sealing.
Digital information.

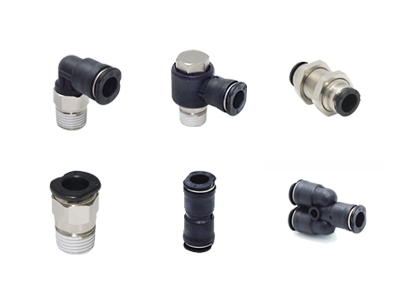

MINI TYPE QUICK FITTINGS
Specifications
Fittings Model | Fittings Type |
KTS M | Straight |
KTSH M | Hex.-Holed Straight |
KTSM M | Female Straight |
KUKS | Bulkhead Union |
KUKM M | Bulkhead Female Straight |
KTL M | Elbow |
KTLL M | Long Elbow |
KSL M | Universal Elbow |
KSLM M | Female Universal Elbow |
KP | Mini Type Plug |
KTT M | Tee |
KTB M | Branch Tee |
KUL M | Union Elbow |
KUS M | Union Straight |
KUT M | Union Tee |
KUY M | Union Y |
KUSD M | Different Diam. Union Straight |
KUTD M | Different Diam. Union Tee |
KUYD M | Different Diam. Union Y |
Specifications
Fluid | Compressed Air, Vacuum |
Pressure (Max.) | 1.0MPa { 10.2kgf / cm2 } |
Negative pressure | -100kPa { -750 mmHg } |
Temperature range | 5~60 oC ( no freezing ) |
Recommended tube | Nylon tube, Polyurethane tube |
