Patented Thread Design.
Patented Tube Gripping Design.
Saves Time, Effort, Cost and Space.
O-Ring Design
Patented Tube Gripping Design.
Saves Time, Effort, Cost and Space.
O-Ring Design

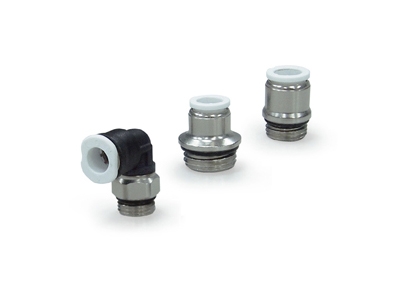

UNIVERSAL TYPE QUICK FITTINGS
Specifications
| Fittings Model | Fittings Type |
| KTSH U | Hex.-Holed Straight |
| KTE | 45o Elbow |
| KTL U | Elbow |
| KTLL U | Long Elbow |
Specifications
| Fluid | Compressed Air, Vacuum |
| Pressure (Max.) | 1.0MPa { 10.2kgf / cm2 } |
| Negative pressure | -100kPa { -750 mmHg } |
| Temperature range | 5~60 oC (no freezing) |
| Recommended tube | Nylon tube, Polyurethane tube |
