Obtained Taiwan,Japan and Chinese patent.
Includes case, to prevent inadvertently.
Positive parallel circuit design.
Patented tube gripping, assembly time and cost.
Long life, durable, stable.
Compact design, space-saving.
Includes case, to prevent inadvertently.
Positive parallel circuit design.
Patented tube gripping, assembly time and cost.
Long life, durable, stable.
Compact design, space-saving.

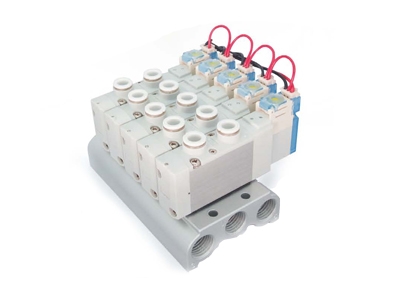

M18 SOLENOID VALVES
Specifications
| Main Unit Type | Type |
| M18-52C1 | Single solenoid 5-port/2-position |
| M18-52C1-S6-01 | |
| M18-52C2 | Double solenoid 5-port/2-position |
| M18-52C2-S6-01 | |
| M18-53 | Double solenoid 5-port/3-position |
| M18-53 -S6-01 |
Specifications
| Item \ Main Unit Type | M18-52 | M18-53 | |||
| C1 | C2 | 12 | 13 | 14 | |
| Media | Air | ||||
| Operation type | Pilot operated | ||||
| Operating temperature range | -10~50oC (no freezing) | ||||
| Operating pressure range | 0.15~0.7MPa | 0.2~0.7MPa | |||
| Maximum operating frequency | 5Hz | 3Hz | |||
| Response time | 26ms or below | 22ms or below | 38ms or below | ||
| Effective sectional area S (Cv) | 10.52mm2(0.57) | 10.15mm2(0.55) | 10.33mm2(0.56) | 10.33mm2(0.56) | |
| Manual override | Locking push type (Includes case) | ||||
| Lubrication | Not required | ||||
| Mounting orientation | Unrestricted | ||||
