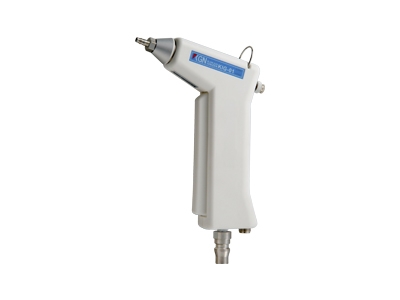

Compact and light (Main body only 220g) to reduce hand fatigue.
Equipped with an airflow adjustment valve, can adjust to suitable flow according to usage requirements.
Safe design, does not requiry the dangerous high-vlotage wiring, and does not need additional controllers.
Due to good ion balance, removal of static electricity is always possible.
Equipped with an airflow adjustment valve, can adjust to suitable flow according to usage requirements.
Safe design, does not requiry the dangerous high-vlotage wiring, and does not need additional controllers.
Due to good ion balance, removal of static electricity is always possible.
Type | KIB-025 | |
Media | Air (Non-lubricated dry air) | |
Voltage at discharging pin | High-frequency AC (Approximate) 2KV,100Hz |
|
Capacity | 3VA(0.1A) | |
Current Consumption | (Approximate) 100mA | |
Ion Balance *1 | ± 10V | |
Indicator LED | Power Supply | LED (Green) |
Abnormality | LED (Red) | |
Ozone volume | 0.04ppm or less | |
Supply Air Flow Range | 160ℓ/min (6 kgf/cm2) | |
Operating Air Pressure Range | 0.05~0.6MPa 0.5~6.0kgf/cm2 |
|
Operating Environmental Temperature | 0~40oC(indoors) | |
Overall Dimensions(Main Unit) W x D x H |
115x140x25 (mm) | |
Weight (Main Unit) | 220g | |
Accessories | AC adapter (KIC-04) Discharging needle clean brush Hanging ring |
*1. 150mm away for the nozzle outlet.
