ldentifies the color proportion by analyzing light into three primary colors : red, green, and blue
Helpful for checking LED colors
Resolving power : 0.1%
Helpful for checking LED colors
Resolving power : 0.1%
Model | NPN Output | PNP Output |

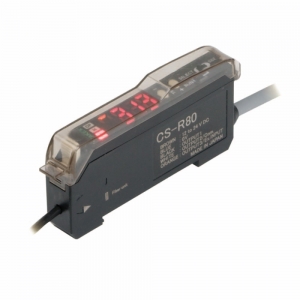

CS-R80 | CS-R80PN | |
Detection method | RGB color composition (RGB light receiving element) | |
Resolution | 0.1% | |
Power supply | 12-24V DC±10% / Ripple 10% or less | |
Current consumption | 50mA or less | |
Teaching standard color | Teaching 1 color(Mode 1) Teaching 3 color(Mode 3) ※1 |
|
Output | 1 output (Model 1) 3 output (Model 3) |
|
External input for teaching | No voltage input (contact / no contact) | |
Output mode |
NPN open collector output,
Sink current 50mA(DC30V) or less, residuql voltage:2V
|
PNP open collector output,
Source current 50mA(DC30V) or less, residuql voltage:2V
|
Operation mode | Conformity ON or OFF selectable | |
Time delay | Selectable between On delay, Off delay and timer disabled Delay time : 250ms fixed |
|
Response time | 50ms or less ※2 | |
Indicator | Operation indicator : "OP" LED lights when output is ON Level indicator : "H" LED lights when light intensity is excessive Level indicator : "L" LED lights when light intensity is excessive |
|
Display | 1 orange digit indicator + 3 red digit indicator | |
Switches | (+), (-) Push button switch : select Mode/teaching/change setting value/select channel Select switch : select RUN/SELECT/SET |
|
Circuit protection | Short circuit protection | |
Material | Polycarbonate | |
Connection | Cable type (outer dimension : dia.3.7mm) 0.2mm2 5 cores, 2m (black) | |
Weight | Approx.60g(Including 2m cable and bracket) | |
Accessory | Mounting bracket, operation manual |
※2 Detection becomes possible one second after the sensor is powered on. The response time varies, depending on the environment such as
light intensity. Optical fiber cable is available separately. Recommended fiber : FT105BC-CS, recommended distance : 5mm.
