Excellent nosie reduction. Low air flow resistance, no hampering of operation of other devices.
Compact, light-weight, easy to install.
Long service life. Elements do not corrode and are highly resistant to water and oil.
Easliy cleaned with kerosene or similar products.
Compact, light-weight, easy to install.
Long service life. Elements do not corrode and are highly resistant to water and oil.
Easliy cleaned with kerosene or similar products.

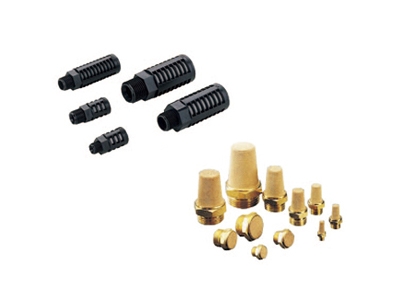

MUFFLERS
PLASTIC MUFFLERS Specifications
BRASS MUFFLERS Specifications
Model | Type |
KM - - KGN | Plastic Muffler |
KM - | Brass Muffler |
KM - - S | Brass Muffler |
PLASTIC MUFFLERS Specifications
Item \ Type | KM-11-KGN | KM-22-KGN | KM-23-KGN | KM-31-KGN | KM-41-KGN | |
Port aperture | Rc 1/8 | Rc 1/4 | Rc 3/8 | Rc 1/2 | ||
Fluid | Air | |||||
Pressure range | 0~0.9Mpa {0~0.92 kgf/cm2} | |||||
Proof pressure | 1.1Mpa {11.5 kgf/cm2} | |||||
Temperature range | 5~60oC (no freezing) | |||||
Material | Body | Polyacetyl (Duracon) | ||||
Element | Polyvinyl alcohol (sponge.filtration 5µm) | |||||
Effective sectional area | 15 mm2 | 21 mm2 | 43 mm2 | 65 mm2 | 74 mm2 | |
Muffling effect | 18 dB | 27 dB | 34 dB | |||
Weight | 4 g | 4.5 g | 18 g | 19.5 g | 22 g |
BRASS MUFFLERS Specifications
Item \ Type | KM-M5 KM-M5-S |
KM-M6 | KM-01 KM-01S |
KM-02 KM-02-S |
KM-03 KM-03-S |
KM-04 KM-04-S |
KM-06 KM-06-S |
KM-08 KM-08-S |
|
Port aperture | M5x0.8 | M6x1.0 | R1/8 | R1/4 | R3/8 | R1/2 | R3/4 | R1 | |
Fluid | Air | ||||||||
Pressure range | 0~0.9Mpa {0~0.92 kgf/cm2} | ||||||||
Proof pressure | 1.3Mpa {13.3 kgf/cm2} | ||||||||
Temperature range | 5~60oC (no freezing) | ||||||||
Material | Body | Brass | |||||||
Element | Sintered brass (60µm) |
