GN Series

GN Series

Download

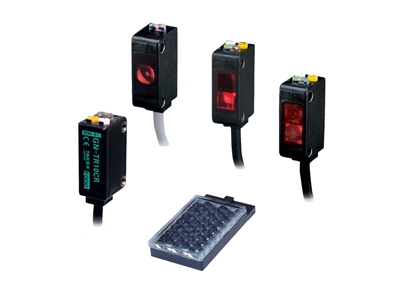

New type of amplifier built-in photo sensor
Slim and compact side-on models
*Lightweight and compact
*Thin, space-saving sensor allows flexible mounting
*Flat lens less affected by dust and dirt
  Superb stability at high power(detection distance of 10m)
*High-intensity indicators with excellent visibility
  Easy to check if the sensor is operating from a distance


Type
  Detection method
 Detecting distance  Model  Operation
mode
 Output
   mode
 NPN Output  PNP Output
Through beam 10m  GN-T10CR  GN-T10CRPN  Light-ON/
Dark-ON
selectable
(with swithch)
 Open collector
7m GN-T7C GN-T7CPN
Polarized
retroreflective
0.03-1.3m GN-M2CR GN-M2CRPN
 Diffuse reflective  400mm GN-R40CR GN-R40CRPN
300mm GN-R30C GN-R30CPN
70mm GN-R7C GN-R7CPN
 Convergent reflective  3-30mm GN-Z3CR GN-Z3CRPN
1-40mm GN-Z3C GN-Z3CPN
