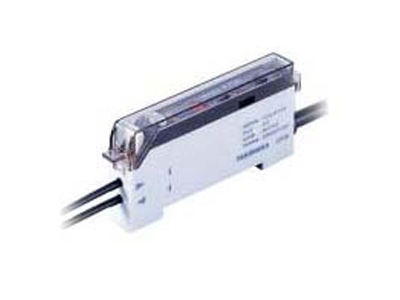

Joint installation of up to 8 units
High accuracy 8-turn sensitivity adjustment
30µs high speed response
High accuracy 8-turn sensitivity adjustment
30µs high speed response
RATING / PERFORMANCE / SPECIFICATION
※ Detection can start when more than 0.5 seconds has passed after power up. If the load and this sensor use different power sources, be sure to turn on the sensor first.
(※1) The detecting distance for high-speed response H type is reduced to roughly 30% of the ordinary type.
Moel | NPN | Cable | F71R | F71G | F71B | F71W | F71RH | F71BH | F71WH |
Connector | F71R-J | F71G-J | F71B-J | F71W-J | F71RH-J | F71BH-J | F71WH-J | ||
PNP | Cable | F71RPN | F71GPN | F71BPN | F71WPN | F71RHPN | F71BHPN | F71WHPN | |
Connector | F71RPN-J | F71GPN-J | F71BPN-J | F71WPN-J | F71RHPN-J | F71BHPN-J | F71WHPN-J | ||
Power supply | 12~24V DC ±10% Ripple 10% or less | ||||||||
Current consumption |
NPN output | 35mA or less | |||||||
PNP output | 40mA or less | ||||||||
Output mode |
Control output(※) |
NPN output | Open collector output / Rating:Sink current 100mA (30V DC) or less / Residual voltage:1V or less | ||||||
PNP output | Open collector output / Rating:Source current 100mA (30V DC) or less / Residual voltage:2V or less | ||||||||
Stability output(※) |
NPN output | Open collector output / Rating:Sink current 100mA (30V DC) or less / Residual voltage:1V or less | |||||||
PNP output | Open collector output / Rating:Source current 100mA (30V DC) or less / Residual voltage:2V or less | ||||||||
Operation mode | Light ON / Dark ON selectable | ||||||||
Timer | On delay / off delay / disabled selectable (by switch) Delay time:about 40 ms fixed |
||||||||
Response time | With switch at 4 (tubo function disabled):250µs or less With switch at 8 (tubo function disabled):500µs or less |
30µs or less (※1) | |||||||
Light source (wavelength) |
Red LED 680(mm) |
Green LED (525mm) |
Blue LED (470mm) |
White LED | Red LED (680mm) |
Green LED (525mm) |
Blue LED (470mm) |
||
Indicator | Operation indicator :orang LED Stability(STB) indicator:green LED | ||||||||
Volume (VR) | SENS : Sensitivity adjustment volume (8-turn without stopper equipped with indicator) | ||||||||
Switch (SW) |
Light ON / Dark ON selector switch : L.ON for Light ON, D.ON for Dark ON
Timer selector switch : NOR. for ON / OFF operation, ON.D for on delay (40 ms), OFF.D for off delay (40 ms)
|
||||||||
Mutual Interference prevention / turbo mode selector switch(common) 8:Mutual Interference prevention for up to 8 units, turbo function enabled 4:Mutual Interference prevention for up to 4 units, turbo function enabled |
---- | ||||||||
Mutual Interference prevention | Provided | ---- | |||||||
Short circuit protection | Provided | ||||||||
Material | Polycarbonate | ||||||||
Connection | Cable type | Attached cable (outer diameter : 4.8mm) 0.2mm2, 4 cores, 2m | |||||||
Connector type | M8 connector | ||||||||
Weight | Cable type:approx. 80g (including cables and mounting bracket) ; M8 connector type :approx.25g | ||||||||
Accessory | Mounting bracket, screwdriver for adjustment, light shielding sticker(excluding H type), instruction manual |
(※1) The detecting distance for high-speed response H type is reduced to roughly 30% of the ordinary type.
