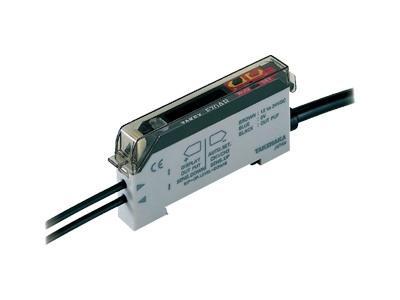

F70A Series

F70A Series

Download
RATING / PERFORMANCE / SPECIFICATION
 Moel  NPN F70AR F70AG F70AB F70AW F70AR-J F70AG-J F70AB-J F70AW-J
PNP  F70ARPN   F70AGPN   F70ABPN   F70ARPN-J   F70AGPN-J   F70ABPN-J   F70ABPN-J   F70AWPN-J
Power supply 12~24V DC ±10% Ripple 10% or less
Current
consumption
NPN output 39mA or less
PNP output 50mA or less
Output
mode
Control
output(※)
NPN output Open collector output / Rating :Sink current 100mA (30V DC) or less / Residual voltage:1V or less
PNP output Open collector output / Rating :Source current 100mA (30V DC) or less / Residual voltage:2V or less
Stability
output(※)
NPN output ----
PNP output ----
Operation mode Light ON / Dark ON selectable
Timer OFF delay / disabled selectable
Delay time:40 ms fixed
Response time Light emission frequency channel:1:600µs or less
Light emission frequency channel:2:700µs or less
Light source
(wavelength)
Red LED
680(mm)
Green LED
(525mm)
Blue LED
(470mm)
White LED Red LED
(680mm)
Green LED
(525mm)
Blue LED
(470mm)
White LED
Indicator Operation indicator :orang LED  Stability(STB) indicator:green LED
Display LCD display with backlight
Switch 2 set buttons / Mode selector switch:RUN / SET
Sensitivity setting Full auto teaching / Auto teaching
Sensitivity setting input Set button input
Sensitivity adjustment function Provided(manual sensitivity adjustment)
Functions Mutual Interference prevention feature
Shor circuit protection feature
Material Polycarbonate
Connection Attached able (outer diameter:4.8mm)  0.2mm2 x3 cores,  2m M8 connector
Weight Cable type:approx. 80g (including cables and mounting bracket) ; M8 connector type :approx.25g
Accessory Mounting bracket / Operation manual
※ Detection can start when more than 0.5 seconds has passed after power up. If the load and this sensor use different power sources, be sure    to turn on the sensor first.
