Due to good ion balance, removal of static electricity is always possible.
Multiple choices for nozzle accessory to apply various enquiry.
Security monitoring, very simple.
Save on updating costs and maintenance fees.
Aluminum case is lightweight.
Multiple choices for nozzle accessory to apply various enquiry.
Security monitoring, very simple.
Save on updating costs and maintenance fees.
Aluminum case is lightweight.

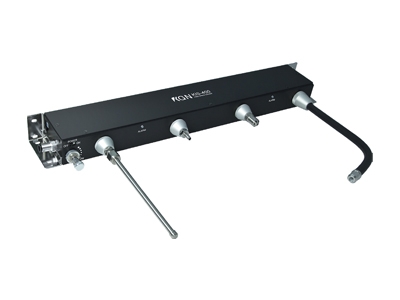

| Type | KIS-400 | |
| Media *1 | Air (Non-lubricated dry air) | |
| Voltage at discharging pin | High-frequency AC Approximate 2KV,72KHz |
|
| Power Input | DC24V ±5% | |
| Current Consumption | Approximate 150mA | |
| Ion Balance *2 | ± 25V | |
| Indicator LED | Power Supply | LED Green |
| Abnormality | LED Red | |
| Warning output *3 | Open collector (NPN) 20mA (Max.50) |
|
| Ozone volume | 0.09ppm or less | |
| Operating Air Pressure Range | 0.2~0.5MPa(2.0~5.0kgf/cm2) | |
| Operating Environmental Temperature | 0~40oC(indoors) | |
| Overall Dimensions(Main Unit) W x D x H |
414 x 60 x 36 (mm) | |
| Weight (Main Unit) | 800g | |
| Accessories | Power and signal cable(2M) | 75.0g |
| Ground cable(2M) | 23.0g | |
| Discharging needle clean brush | 1.4g | |
*1. When in use, it is prohibited to operate continuously in a state where no gas source is supplied.
*2. 300mm away for the nozzle outlet.
*3. For signal monitoring only, do not drive load directly.
