Does not form concentrated electric fields; the nozzle could be as close as 1mm to the targeted object.
The ions could be transferred throungh a conductive tube or metal tube, overcoming the problem of narrow spaces in the equipment.
Could be used with low-voltage power supplies; there's no risk of high voltage wiring.
Multiple choices for nozzle accessory to apply various enquiry.
Due to good ions balance, removal of static electricity is always possible.
The ions could be transferred throungh a conductive tube or metal tube, overcoming the problem of narrow spaces in the equipment.
Could be used with low-voltage power supplies; there's no risk of high voltage wiring.
Multiple choices for nozzle accessory to apply various enquiry.
Due to good ions balance, removal of static electricity is always possible.

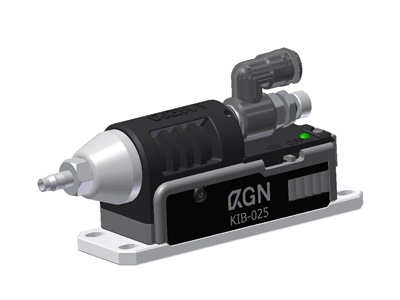

Type | KIB-025 | |
Media *1 | Air (Non-lubricated dry air) | |
Voltage at discharging pin | High-frequency AC | |
Power input | DC24V ±5% | |
Current Consumption | Approximate 100mA | |
Operating High-Voltage Power supply |
Miniaturized AC high-voltage
high-frequency type power supply built-in |
|
High Voltage Output | Approximate 2KV, 72KHz | |
Ion Balance *2 | ± 15V(300mm away for the nozzle outlet) | |
Indicator LED | Power Supply | Power indicator LED turns on (Green) |
Abnormality | Abnormality indicator LED turns on (Red) | |
Warning output *3 | Open collector (NPN)20mA (Max.50mA) | |
Ozone volume | 0.03ppm or less | |
Supply Air Flow Range *4 | Approximate 170ℓ/min(ANR) | |
Operating Air Pressure Range | 0.05~0.5MPa(0.5~5.0kgf/cm2) | |
Operating Environmental Temperature | 0~40oC(indoors) | |
Overall Dimensions(Main Unit) W x D x H |
25x92x56 (mm) | |
Weight (Main Unit) | 164g | |
Accessories | Power and signal cable(2M) Ground cable(2M) Discharging needle clean brush Instruction manual |
*1.When in use, it is prohibited to operate continuously in a state where no gas source is supplied.
*2.300mm away for the nozzle outlet.
*3.For signal monitoring only, do not drive load directly.
*4.The airflow is according to the measured value under the 0.5MPa conditions with a KIB-N01S nozzle.
