PRODUCTS Products
Modularized design for easy maintenance.
Display on top of device frame.
Compact and space saving.
Display on top of device frame.
Compact and space saving.

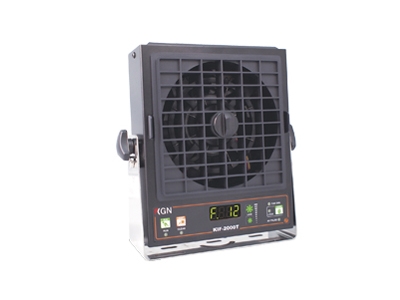

| Type | KIF-1000T | KIF-2000T | |
| Ion generation | Conrona discharge | ||
| Voltage at discharging pin | High-frequency AC | ||
| Static elimination time *1 (±1000V►±100V) |
约1.5秒 | 约1.0秒 | |
| lon balancing | ±5V | ||
| Air volume | 26~60CFM (0.74~1.70 M3/min) |
64~150CFM (1.82~4.26 M3/min) |
|
| Ozone volume (within 150mm) | 0.007ppm以下 | ||
| Control for discharging suspension *2 | Power input (DC10V~30V) | ||
| Warning output *3 | Fan stop | YES | |
| Discharge error | YES | ||
| The pin cleaning module is not properly covered |
YES | ||
| High voltage output | Approximate 2KV, 72KHz | ||
| Ambient temperature | 0~40oC(indoor) | ||
| Relative humidity | 35%~75%，non-condensing | ||
| Power input | DC24V ± 5% | ||
| Current consumption | 370mA | 470mA | |
| Dimension WxHxD mm | 116x142x63 | 142x173x63 | |
| Weight (Mounting excluded) | 484g | 690g | |
| Warranty(Accessories excluded) | 2 Yr | ||
| Accessories | Mounting kit I/O Connector(KIF-OC1) Ground cable(2M) Safety Filter Instruction manual |
||
*1.Measured with maximum air speed and at a location centered in the air output and 300mm away from the fan.
*2.When pausing the power input, the warning contact output.
*3.Signaling at output contact, NC/NO panel switch (50mA)
