PNC Bending Needle

PNC Bending Needle

Download
PNC Bending Needle
Special curvature design for better material dispensing.
Best for lateral dispensing. Two angles for exensive use.
PNC Bending Needle
 Unit : mm
Type  I.D O.D Hub Color
PNC-16G-       1.26 1.66 Whit
PNC-17G-       1.07 1.47 Lavender
PNC-18G-       0.86 1.26 Pink
PNC-19G-       0.67 1.07 Beige
PNC-20G-       0.60 0.90 Light yellow
PNC-21G-       0.50 0.80 Light green
PNC-22G-       0.40 0.70 Gray
PNC-23G-       0.33 0.63 Light blue
PNC-24G-       0.31 0.55 Light red
PNC-25G-       0.26 0.50 Crocus
PNC-26G-       0.21 0.45 Orange
PNC-27G-       0.20 0.40 Light gray
PNC-30G-       0.15 0.30 Purple
Needle Material:Stainless Steel
Hub Material :PP

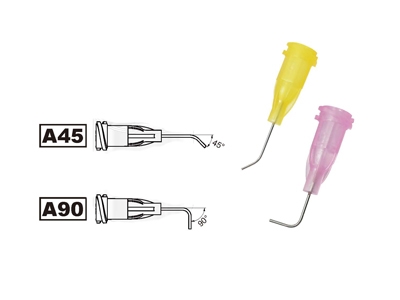

*Custom made :
PNC-     G-A45-UV (UVCut)
PNC-     G-A90-UV (UVCut)
