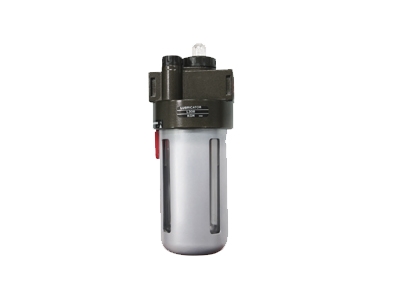

AIR LUBRICATOR Specification
| Item \ Main Unit Type | L 158-01(02) | L 308-02(03) | L 608-04(06) | |
| Fluid | Air | |||
| Tubing connection Rc | 1/8 (1/4) | 1/4 (3/8) | 1/2 (3/4) | |
| Pressure range kgf/cm2(kPa) | 0.5~8.5(50~850) | |||
| Max.service pressure kgf/cm2(kPa) | 9.5 (950) | |||
| Range of service temperature oC | 5~60 (no freezing) | |||
| Lubricator oil storing capacity cc | 25 | 90 | 160 | |
| Wight kg | 0.17 | 0.36 | 0.42 | |
| Material | Main unit | Aluminum diecast | ||
| Bowl | Polycarbonate | |||
