SUS304 Filter can be disassembled to clean.
Compact
Free to choose the exhaust way.
Easy to install.
Multi-angle rotation.
Accessories can be directly linked with the solenoid valve.
Provision of two to five manifold for using.
Compact
Free to choose the exhaust way.
Easy to install.
Multi-angle rotation.
Accessories can be directly linked with the solenoid valve.
Provision of two to five manifold for using.

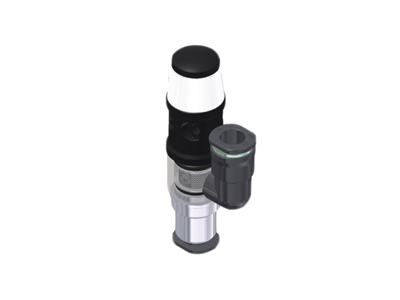

MINI TYPE VACUUM EJECTORS
MINI TYPE VACUUM EJECTORS Specification
VACUUM EJECTORS
VACUUM EJECTORS Specification
Click-->KVM Manual
Click-->KVM-T Manual
Model | Type |
KVM | Straight |
KVM- -T | Directly insert type |
KV T | Manifold |
KVM - S1 | Muffler Element |
KVM - S2 | Muffler Element |
MINI TYPE VACUUM EJECTORS Specification
Item \ Type | KVM-S405(T) | KVM-S407(T) | KVM-S505 KVM-S605(T) |
KVM-S507 KVM-S607(T) |
KVM-S510 KVM-S610(T) |
|
Final vacuum (-KPa) | 91.6 | 92.6 | 91.6 | 92.6 | 93.0 | |
Suction flow [ l/min(ANR)] | 8.5 | 14.5 | 8.5 | 15.5 | 27.5 | |
Air consumption [ l/min(ANR)] | 13.5 | 27.0 | 13.5 | 27.0 | 56.0 | |
Filter | 100µm | |||||
Fluid | Air | |||||
Pressure range | 0.15~0.7Mpa {kgf/cm2} | |||||
Temperature range | 5~60oC (no freezing) | |||||
Rated supply pressure | 0.5MPa | |||||
Recommended tube | Nylon tube, Polyurethane tube | |||||
* The flow is an atmospheric pressure conversion value at 0.5MPa. Unit:mm |
VACUUM EJECTORS
Model | Type |
KV - | Standard |
KV - C | Setting Value Fixed |
KV - CK | Setting Value Adujstable |
VACUUM EJECTORS Specification
Item \ Type | KV-05.KV-10 | KV-15 | KV-20 |
Fluid | Air (non-corrosive gas) | ||
Temperature range | 5~60oC (no freezing) | ||
Lubrication | No possible | ||
Pressure range | 0.1~0.6Mpa [1.0~6kgf/cm2 G] | ||
Weight Standard / C Type / CK Type |
80/100/120 (g) | 140/160/190 (g) | 350/370/460 (g) |
