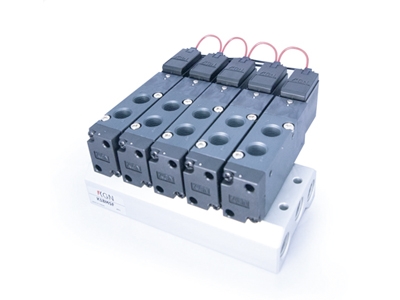

K28 Series Solenoid Valves

K28 Series Solenoid Valves

Download
K28 SOLENOID VALVES
 Main Unit Type                               Type
 K28      -52C1  Single solenoid 5-port/2-position
 K28      -52C2  Double solenoid 5-port/2-position

Specifications
  Item                \             Main Unit Type     K28      -52C1     K28      -52C2
  Media    Air
  Operation type Pilot operated
  Port size Rc1/4
  Operating pressure range                  MPa  0.17~0.7
  Proof pressure                                 MPa 1.05
  Consumption Current                           W 1.6
  Response time                                   ms  ON 15 / OFF 30 以下or below   ON 15 / OFF 15 以下or below
  Effective sectional area S (Cv)           mm2 25.00(1.39)
  Maximum operating frequency              Hz 5
  Operating temperature range                oC  5~50(no freezing)
  Maximum operating cylinder size ~Ø125
