Obtained Taiwan,Japan and Chinese patent.
Includes case, to prevent inadvertently.
Positive parallel circuit design.
Patented tube gripping, assembly time and cost.
Long life, durable, stable.
Compact design, space-saving.
Includes case, to prevent inadvertently.
Positive parallel circuit design.
Patented tube gripping, assembly time and cost.
Long life, durable, stable.
Compact design, space-saving.

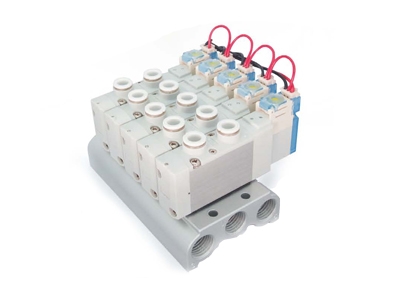

M28 SOLENOID VALVES
Specifications
Main Unit Type | Type |
M28-52C1 | Single solenoid 5-port/2-position |
M28-52C2 | Double solenoid 5-port/2-position |
M28-53 | Double solenoid 5-port/3-position |
Specifications
Item \ Main Unit Type | M28-52C1 | M28-52C2 | M28-53 | ||
12 | 13 | 14 | |||
Media | Air | ||||
Operation type | Pilot operated | ||||
Operating temperature range oC | -10~50(no freezing) | ||||
Operating pressure range MPa | 0.15~0.7 | 0.2~0.7 | |||
Maximum operating frequency Hz | 5 | 3 | |||
Response time ms | 38以下 or below | 30以下 or below | 56以下or below | ||
Effective sectional area S (Cv) mm2 | 13.86(0.77) | 11.52(0.64) | 11.16(0.62) | 14.58(0.81) | |
Manual override | Locking push type (Includes case) | ||||
Lubrication | Not required | ||||
Mounting orientation | Unrestricted |
