Obtained Taiwan,Japan and Chinese patent.
Includes case, to prevent inadvertently.
Positive parallel circuit design.
Patented tube gripping, assembly time and cost.
Long life, durable, stable.
Compact design, space-saving.
Includes case, to prevent inadvertently.
Positive parallel circuit design.
Patented tube gripping, assembly time and cost.
Long life, durable, stable.
Compact design, space-saving.

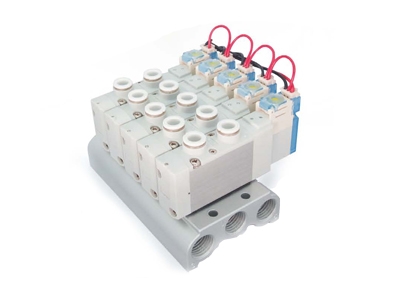

M11 SOLENOID VALVES
Specifications
Main Unit Type | Type |
M11-52C1 | Single solenoid 5-port/2-position |
M11-52C1-S4-M5 | |
M11-52C2 | Double solenoid 5-port/2-position |
M11-52C2-S4-M5 | |
M11-53 | Double solenoid 5-port/3-position |
M11-53 -S4-M5 |
Specifications
Item \ Main Unit Type | M11-52 | M11-53 | ||
12 | 13 | 14 | ||
Media | Air | |||
Operation type | Pilot operated | |||
Operating temperature range oC | -10~50(no freezing) | |||
Operating pressure range MPa | 0.15~0.7 | 0.2~0.7 | ||
Maximum operating frequency Hz | 10 | 3 | ||
Response time ms | 10以下 or below | 15以下or below | ||
Effective sectional area S (Cv) mm2 | 3.90(0.21) | 3.67(0.2) | 3.89(0.21) | 3.84(0.20) |
Manual override | Locking push type (Includes case) | |||
Lubrication | Not required | |||
Mounting orientation | Unrestricted |
